Wireless Optical Communication

Overview

Taara uses Wireless Optical Communication (WOC), a line-of-sight technology, to transmit video, voice and data at high speeds of up to 20 Gbps. A single link can cover distances up to 20 km. The effective range may be increased by relaying links. Taara's wireless links can be used to provide fiber backhaul, rapidly extend existing architecture, and create local area networks. Key advantages include:

  1. 1

    Quick deployment

    • Can be installed and uninstalled in less than a day
    • Easy to transport and requires limited support equipment
    • May be mounted on poles, towers, or rooftops
  2. 2

    Connectivity across difficult terrain

    • Sites located around water bodies
    • Forested region
    • Railway tracks and dense urban areas
  3. 3

    No right of way permits

    • No right of way permits or spectrum license
    • Data is transmitted wirelessly with Class 1M eye-safe lasers in the unlicensed infrared band ( 193 THz)
  4. 4

    Cost competitive & easy to integrate

    • Significantly favorable economics on a cost per GB/km compared to traditional alternatives
    • Based on open standards to work with existing infrastructure

Data sheet

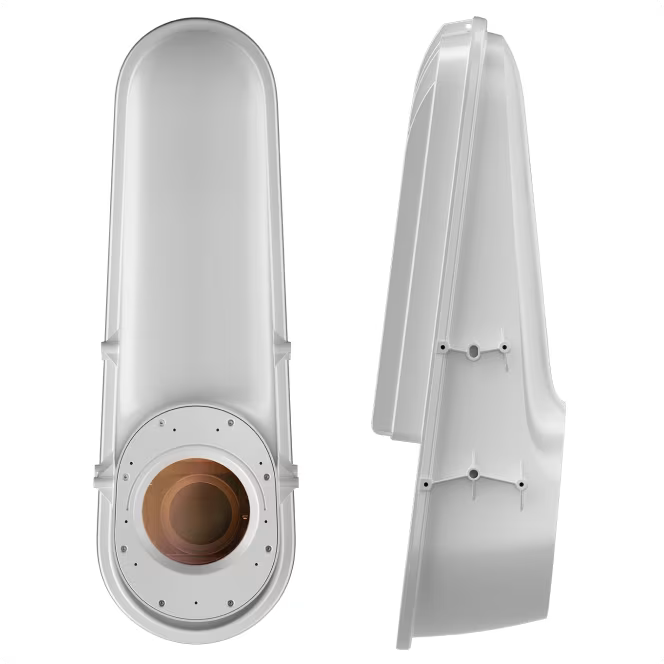

Terminal specifications

ParameterValue
Throughput20 Gbps full-duplex
Range400 m to 20 km
LatencyMinimum latency (processing delay) < 160 μs; Mean latency < 5 ms
Dimentions220 mm x 240 mm x 750 mm
Weight13 kg
Regulatory complianceIEC 62368-1, 60950-22, FCC 15.b, EN 300 386

Power specifications

ParameterValue
Power consumption40 W typical; 60 W maximum
Power connections± 38 to ± 58 V; ± 48 V DC (nominal) or PoE++ (UPoE)
Maximum current drawn1.25 A

Environmental specifications

ParameterValue
Operating temperature range (ambient)-20 to 55°C (Can operate at up to 65° solar loading)
Storage temperature range (ambient)-40 to 85 °C
Relative humidity5 – 100%
Enclosure ratingIP 65

Line-on-sight specifications

ParameterValue
Allowable tower twist/sway± 3 degrees
AlignmentAutomated search and acquisition
Mounting bracket weight3.7 kg
Mounting bracket dimensions0.25 m x 0.2 m x 0.18 m
Mounting pole diameter6 3.5 mm - 101. 6 mm

Laser specifications

ParameterValue
ClassificationClass 1M (eye safe)
Maximum output power25 dB m; 30 dBm for 0.5.1 or higher version software
Wavelength range1535 – 1565 nm
Regulatory complianceIEC 60825-1, 60825-12, 21CFR Part 1040

Interface specifications

ParameterValue
Network connectionsTwo 10 GbE optical SFP+ ports (data); One 1G RJ-45 Ethernet port (management)
Supported SFP+ types10 GBASE-SR, 10 GBASE-SRL, 10 GBASE-LR, 10 GBASE-LRM, 10 GBASE-ER, 10 GBASE-ZR
Equipment management systemSNMP v3 IETF RFC 3413 customized management information base compatible with commercial SNMP software
Supported data protocolIEEE 802.3 10 GbE (Including jumbo ethernet frames)
Performance monitoring1 Hz telemetry, including: Transmit and received power; System reset/alarm flags; Throughput (bps); Latency; Pointing system statistics.

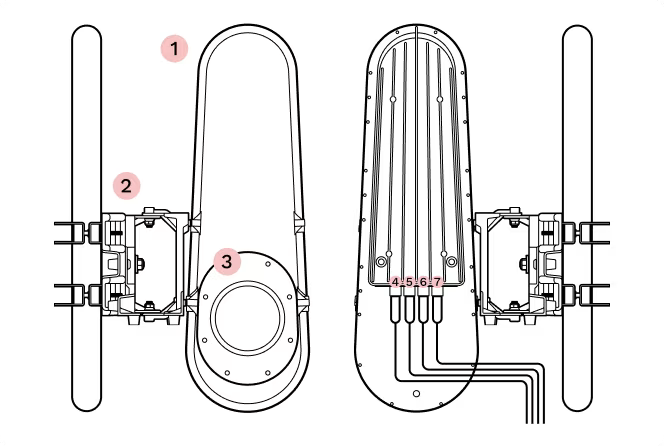

  1. 1

    Chassis

  2. 2

    Mounting bracket

  3. 3

    Window

  4. 4

    Octis SFP connector (Channel 2)

  5. 5

    Octis SFP connector (Channel 1)

  6. 6

    Octis RJ45 connector

  7. 7

    Octis DC connector
